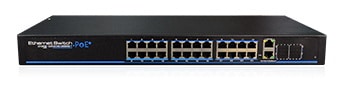

24 Ports PoE Fast Managed Ethernet Switch, 802.3af/at, Support WEB Management, 6KV Lightning Protection, 450W

ifs-2624w-420

  • PoE/PoE+
  • Power Dissipation: <450W (Including PoE)
  • PoE Budge 420 watts max

Download Datasheet



Specification

This item is a 24-port managed PoE Ethernet switch, which provides 24*100Mbps downlink PoE Ethernet ports, support IEEE802.3 af/at and 2*1000Mbps uplink Ethernet ports. It supports Layer 2 network management and PoE management based on web and provides high-speed data forwarding. It is widely used  in security surveillance, network engineering projects and so on.



Features

Hardware Features :

item

IONNET-IFS-2624W (420)

Downstream Ports

24* 10/100BASE-TX(PoE)

Uplink Ports

2*10/100/1000BASE-T

Network Standard

IEEE802.3,   IEEE802.3u,  IEEE802.3ab,  IEEE802.3X,  IEEE 802.1Q,  IEEE 802.1p IEEE 802.3ad,    IEEE 802.1D,  IEEE 802.1X

Switch Capacity

8.8Gbps

Throughput

6.5Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

12M

MAC Table

16K

PoE Standard

802.3af/at

PsE Type

End- span

Power Pin Assignment

1/2(+) ,3/6(-)

PoE Power Output

54V DC, 30 watts max

PoE Budge

420 watts max

Lightning protection

6KV Execute : IEC61000-4-5

ESD

6KV Contact discharge 8KV Air discharge

Execute:IEC61000- 4- 2

Power Supply

100~240V AC;50/60Hz

Power Dissipation

<450W(Including PoE)

Work temperature

-10℃~55℃

Storage temperature

-40℃~85℃

Humidity (Non-condensin)

5%-95%

Dimension (LxWxH)

442mm×207mm×44.5mm

Weight

2.69kg

Regulator

CE,  FCC,  ROHS



Software Features :

Port Management

Support port enabling and disabling

Support port speed settings

Support port full-duplex mode

Support IEEE802.3x flow control

Support port name modification

VLAN

Support of 4K VLAN

supports 802.1Q VLAN protocol

Support VLAN based on port

Quality of Service

Support  QoS Congestion Management

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Support 802.1p CoS/DSCP priority

Multicast Management

Support  SNMPV 1 / V2 / V3 protocols

Support  IGMP Snooping

POE management

Support Total Power Control

Support  PoE On Off

Support single-port 30W output, Output port and priority

Security Features

Supports  IP, MAC, port, VLAN binding combinations

Support  MAC address auto-learning, aging and filtration

Support port isolation, port speed limit

Support  RSTP

Support 5 groups of link aggregation

Support  802.1X

System Management

Web – based GUI and CLI management

Support  FTP / TFTP / HTTP load upgrade

Support  traffic  statistics

Support  MAC address table query

Support IP address, DNS server modifications

Support user name and password modification

Support for history, log management

Support System Configuration Backup

Support to recover the default factory settings on reboot
